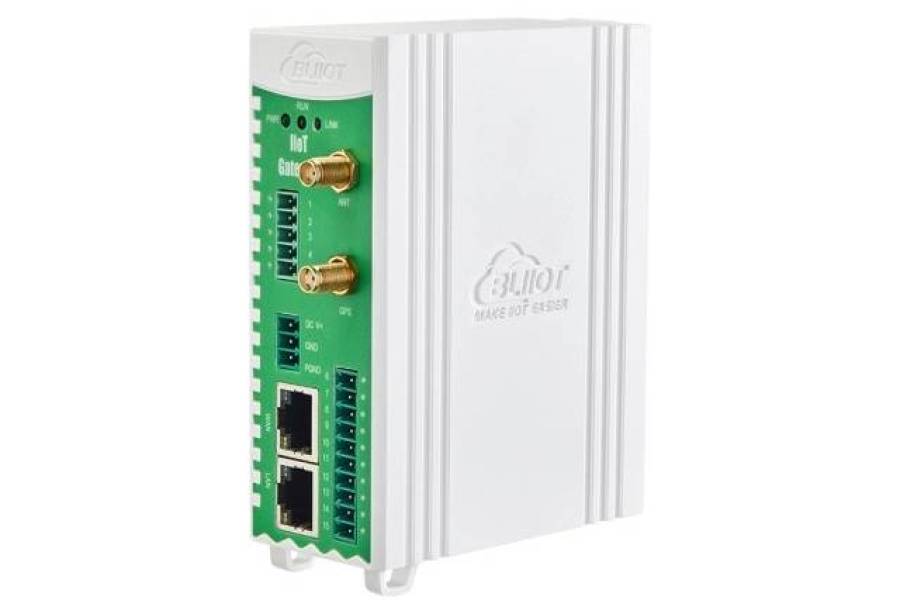

Modbus to Ethernet/IP Converter BLIIOT BL124, $ 50.00

The Modbus to EtherNet/IP gateway is an industrial communication device whose main function is to realize data conversion and communication between devices using the Modbus protocol (including Modbus RTU/ASCII and Modbus TCP) and controllers or systems using the EtherNet/IP protocol. Connect existing Modbus RTU instruments, sensors, actuators, etc. to PLC control systems based on EtherNet/IP (such as Rockwell Allen-Bradley PLC).


Key Features

Bidirectional Protocol Conversion

• Downlink Protocol: Modbus RTU (Master/Slave Mode)
• Uplink Protocol: Ethernet/IP
• Supports 8 Modbus Function Codes: 01H/02H/03H/04H/05H/06H/0FH/10H

Dual-Channel RS485 Interfaces

• 31 devices per port
• Baud Rate: 2400~115200bps
• Industrial Protection: ESD ±6kV (Contact)/±8kV (Air), EFT 1kV

Intelligent Data Buffering

• I/O Data Capacity: ≤496 Bytes
• Multi-byte Alignment (Required for FC01/02 configurations)

Zero-Code Web Configuration

• Default IP: 192.168.3.10 (User: admin, No Password)
• Visual Setup for Modbus Master/Slave Parameters
• Firmware Backup/Restore & System Log Monitoring

Typical Applications
Equipment Networking: Connect Modbus Devices (Meters/UPS/Thermostats) to Ethernet/IP Networks
PLC System Integration: Integrate Modbus devices into Ethernet/IP PLC
Legacy System Integration: Bridge older Modbus devices to modern Ethernet/IP master systems.
